Rigid Foam Insulation
Increases windows and doors R-value
Windows, doors, and façades play a crucial role in your building's performance—but they’re also where the most heat escapes. Poor insulation means wasted energy and higher costs. At Stream Infinity, we specialize in custom-made insulated inserts that reduce heat loss, enhance efficiency and increases rigidity.
​​
Real-World Example
Base window system has a U-value of 1.40 W/m²·K.
-
With Neopor, it drops to ~1.15 W/m²·K
-
With Comfort Lock HFO, it could drop further to ~1.00–1.05 W/m²·K
-
​
Base window system has a U-value of 1.40 W/m²·K.
-
With Neopor, it drops to ~1.15 W/m²·K
-
With Comfort Lock HFO, it could drop further to ~1.00–1.05 W/m²·K
-
Energy Star rating from Zone 2 to zone 3
That’s a total improvement of ~15–30%, which could be the difference between meeting ENERGY STAR or Passive House thresholds—or falling short.
Maximize Window Strength with Window Reinforcement
​

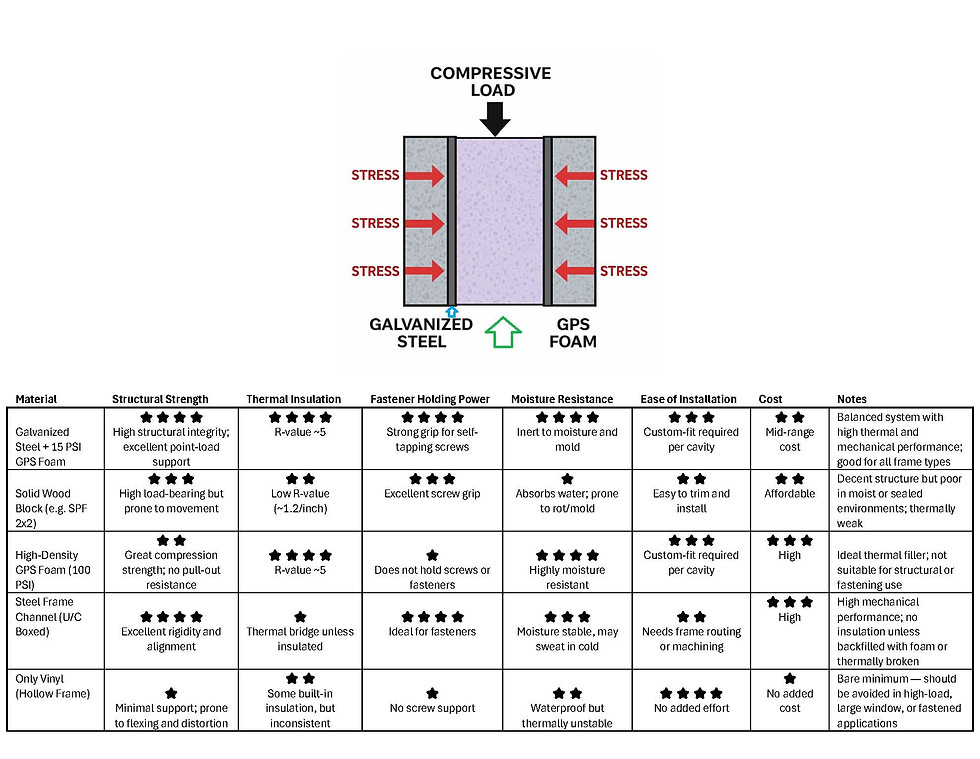

At Stream Infinity, our reinforced insulation for window frames and reinforced insulations for door frames integrate 16-gauge galvanized steel sheets bonded to GPS foam backer, enhancing structural insulation for windows and door frames with superior load distribution, stress resistance, and thermal efficiency (R-value ≈ 5). Designed for retrofit and manufacturing applications, this solution reinforces frames against high winds, foundation shifts, and dynamic forces without compromising insulation or design flexibility for vinyl window reinforcement and many more applications.
R-7 Insulation
​
Stream Infinity’s closed-cell polyurethane insulation delivers superior thermal performance with an R-value of 7, preventing heat loss through thermal transmission, convection, and radiation with a thermal conductivity of ~0.020 W/m·K. Designed for durability, our insulation resists deterioration while ensuring long-term efficiency.
Our insulation for window frames and insulation for door frames, optimize energy efficiency. If you need custom insulation for windows and door frames, we provide tailored solutions for superior performance.
NFRC Simulation Input Summary:
Comfort Lock HFO
Material Type: Closed-cell medium-density spray polyurethane foam
Thermal Conductivity: ~0.020 W/m·K
R-Value (per inch): ~6.7–7.0
Density: ~35 kg/m³
Moisture Absorption: 0.7% by volume
Water Vapor Permeance: 47 Pa·s·m²
Air Permeance: 0.004 L/s·m² @ 75 Pa
Fire Rating: Flame Spread 220, Smoke Developed 110 (CAN/ULC S102)
Application: Custom-cut blocks for cavity fill
Certifications:
• CCMC #14509-L
• CAN/ULC S705.1-15 compliant
• GREENGUARD & GREENGUARD GOLD certified
R-5 Insulation

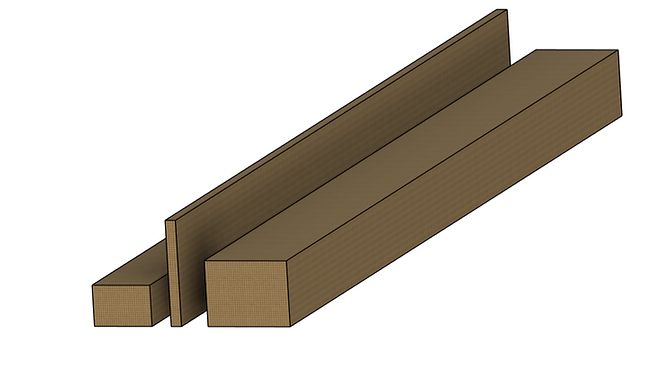

Stream Infinity’s Graphite Polystyrene (GPS) rigid insulation delivers exceptional thermal efficiency, significantly reducing heat loss through thermal transmission, convection, and radiation with a thermal conductivity of approximately 0.031 W/m·K. Engineered for durability, GPS foam can be custom-cut into insulated profiles for windows, doors, and façades, addressing the most vulnerable points in a building’s thermal envelope.
With an R-value of 5, GPS insulation lowers costs and contributes to energy-efficient buildings when paired with high-quality glass. Designed for sustainability and long-term efficiency, Stream Infinity’s GPS rigid insulation is the ideal solution for modern construction. If you need insulation for window frames and insulation for door frames, we provide tailored solutions for superior performance.
​
NFRC Simulation Input Summary:
Neopor® F 5300 Plus
Material Type: Graphite-enhanced expanded polystyrene (GPS)
Thermal Conductivity: ~0.031 W/m·K
R-Value (per inch): ~4.5–5.0
Density: Varies by expansion, typically ~15–30 kg/m³
Moisture Absorption: Low
Fire Rating: Complies with ASTM E84 / UL 723 / CAN ULC S102
Application: Molded inserts for window frame cavities
Processing Notes:
• Pre-expanded and molded into blocks or shapes
• Can be CNC-cut for precision fit
• Flame-retardant additive uniformly distributed
Technical Documentation
STREAM Comfort Lock HFO - MSDS_230606_205914
Improving window energy efficiency
Stream GPS Types I, II, III data sheet
GPS Material Property Data Sheet
Reinforced Insulation Data sheet
Stream poly data sheet
Reinforced Structural Insulation
_edited.jpg)
R-7 Insulation
R-5 Insulation
Vinyl Window Reinforcement & Rigid Foam Insulation
At Stream Infinity, we provide high-quality vinyl window reinforcement and rigid foam insulation to enhance the durability and energy efficiency of your commercial property. Our solutions are designed to reduce energy costs, improve comfort, and ensure long-lasting protection.
Why Choose Us Vinyl Window Reinforcement?
Vinyl window reinforcement adds strength to your window frames, preventing warping, bowing, or damage over time. By reinforcing your windows, you not only increase their lifespan but also improve energy efficiency, making your structure more secure and reducing maintenance needs.
Rigid Foam Insulation for Better Efficiency
Rigid foam insulation is a powerful solution for reducing energy loss. By applying foam insulation around windows, doors, and walls, you can prevent heat from escaping during winter and keep your building cool in the summer. This creates a more comfortable indoor environment and lowers energy bills.
Key Benefits of Our Solutions
Durability
Energy Efficiency
Reinforced windows last longer and withstand harsh weather conditions.
Rigid foam insulation minimizes heat loss and air infiltration, improving your home’s efficiency.
Comfort
Maintain a consistent temperature throughout the year, regardless of the season.
Cost Savings
Enhance your home’s insulation to reduce heating and cooling costs.
